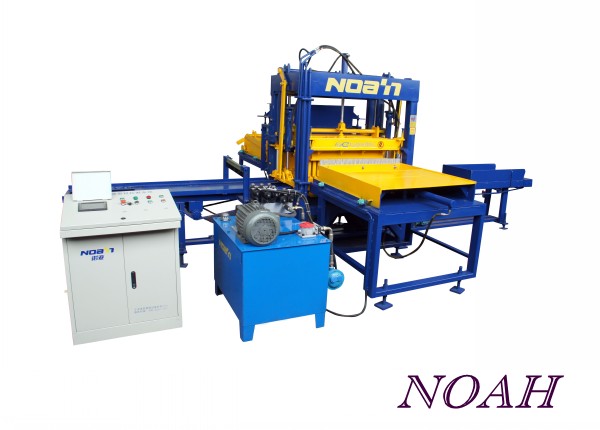

QFT5-15 BLOCK MAKING MACHINE



1.The hydraulic most simplistic, a few minutes you can master the operation essentials
2. Simple Horizontal secondary fabrics, pressure oscillation combine high density molded products, excellent performance
3. compact structure, simple operation, easy maintenance. Reliable, economical and practical, suitable for small and medium sized customers start investing
4. This machine design can produce more capacity color pavers, curbstone.

QFT5-15 PRODUCTION CAPACITY

SPEC. Block
390*190*190
 Block
390*100*190
Rectangular 200*100*60    I Shape 200*165*60 S Paver
225*112.5*60
Porous Brick
240*115*90
   SolidBrick
240*115*53
Code
Pcs/Pallet 5 10 20 10 16 16 34
Pcs/Hour 900 1800 3600 1800 2880 2880 6120
Pcs/8 Hour 7200 14400 28800 14400 23040 23040 48960
Year(300day) 30423m³ 32000m³ 172800m² 142574m² 174987m² 6910000Pcs 15000000Pcs




QFT5-15 TECHNICAL DATA
Overall Dimensions 4850*5650*2300(mm)
Pallet Size(mm) 1150*550*25(Bamboo)
Machine Weight 5000kg
The Frequency Of Vibrate 50-90Hz
Max Excitation Force 60KN
Cycle Time(s) 15-20S
Installed Capacity(kw) 23KW
