Block Macking Machine

Automatic block making machineMain Technical Parameters of automatic block making machine.

Model	Unit	QFT3-15	QFT4-15	QFT5-15	QFT12-15
Overall Dimensions	mm	385046502250	385046502250	385056502300	720052002900
Pallet Size (mm)	GMT	69055016	85055016	115055025	135090030
Machine Weight	kg	4000	4000	5000	13100
Vibration Power	kw	8	11	15	30
Cycle Times (s)	s	15-20	15-20	15-20	15-20
Installed Capacity (kw)	kw	18	21	28	55

Model	Unit	QT6-15	QT8-15	QT9-15	QT9-15E	QT10-15
Overall Dimensions	mm	650038002600	68008502660	680050002900	680041502900	690051002900
Pallet Size (mm)	GMT	85068020	85085020	135070025	110070025	110088025
Machine Weight	kg	8350	9100	12100	11100	12100
Vibration Power	kw	15	15	22	15	22
Cycle Times (s)	s	15-20	15-20	15-20	15-20	15-20
Installed Capacity (kw)	kw	31	40	47	38	42

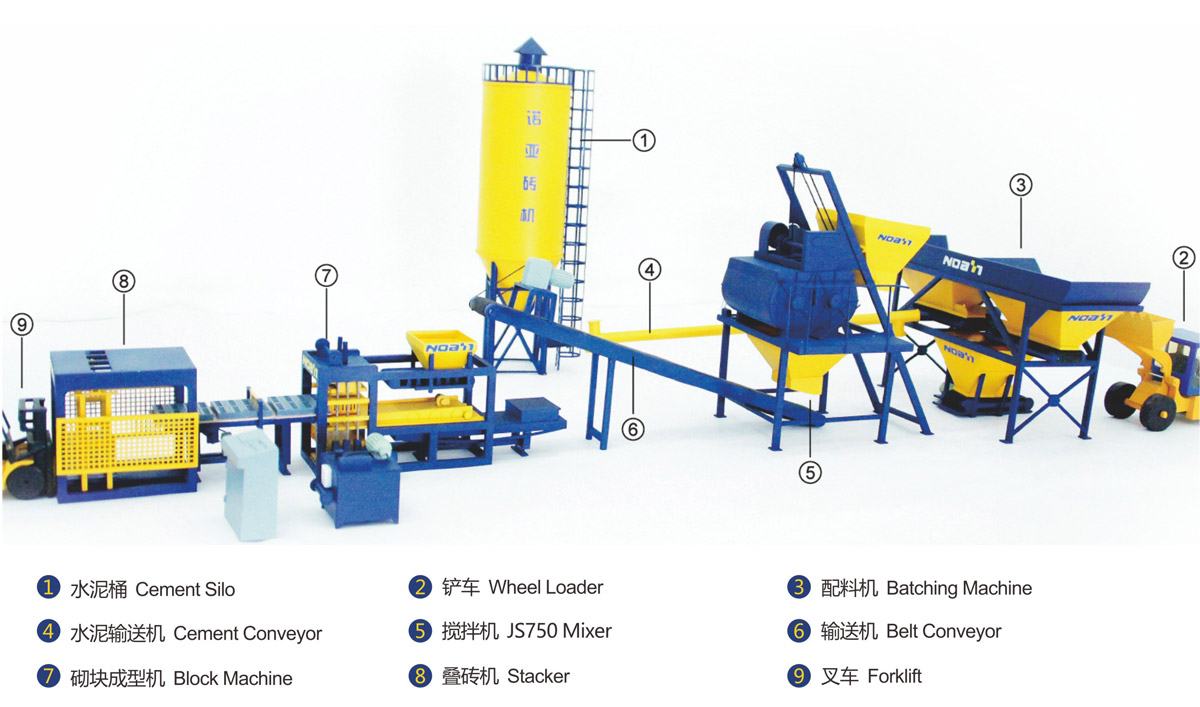

QT3-15 Simple block producting line

QT4-15 Simple block producting line

QT5-15 Simple block producting line

QT6-15/QT8-15 Automatic block making machine

QT8-15E Automatic block making machine

QT9-15E Automatic block making machine

QFT12-15 Automatic block making machine

QT12-15 Automatic block making machine

QT18-20 Automatic block making machine

Block machine capacity list.

Brick type	Specification	Production	QFT3-30	QFT3-15	QFT4-30	QFT4-15	QFT5-15	QFT6-15	QFT9-15E	QFT8-15	QFT9-15	QFT10-15	QFT12-15	QFT18-20
Block blocks	Block 390×190×190mm 71Pcs/m³	Pcs/Pallet	3	3	4	4	5	6	7.5	8	9	10	12	18
		Pcs/Hour	398	597	480	720	900	1080	1350	1440	1620	1800	2160	3240
		Pcs/8 Hour	3187	4780	3840	5760	7200	8640	10800	11520	12960	14400	17280	25920
		M³/Year	13466	20200	16225	24338	30423	36507	45634	48676	54761	60845	73014	109521
Block blocks	Block 390×100×190mm 135Pcs/m³	Pcs/Pallet	6	6	8	8	10	12	12	14	15	18	21	36
		Pcs/Hour	597	900	720	1440	1800	2160	2160	2520	2700	3240	3780	6480
		Pcs/8 Hour	4780	7170	5760	11520	14400	17280	17280	20160	21600	25920	30240	51840
		M³/Year	10623	16000	12799	25600	32000	38400	38400	44800	48000	57600	67200	115200
Dutch brick	Rectangular Prver 200×100×60mm 50Pcs/m³	Pcs/Pallet	10	10	14	14	20	21	27	21	36	35	42	66
		Pcs/Hour	1394	2100	1680	2520	3600	3780	4860	3780	6480	6300	7560	11880
		Pcs/8 Hour	11155	16700	13440	20160	28800	30240	38880	30240	51840	50400	60480	95040
		M³/Year	66931	100000	80640	120960	172800	181440	233280	181440	311040	302400	362880	570240
I-shaped brick	I Shape Paver 200×165×60mm 30Pcs/m³	Pcs/Pallet	6	6	8	8	10	12	15	12	21	18	28	42
		Pcs/Hour	796	1200	960	1440	1800	2160	2700	2160	3780	3240	5040	7560
		Pcs/8 Hour	6374	9600	7680	11520	14400	17280	21600	17280	30240	25920	40320	60480
		15-20	63112	95000	76039	114059	142574	171089	213861	171089	299406	256634	399208	598812
Wave brick	S Paver 225×112.5×60mm 40Pcs/m³	Pcs/Pallet	9	9	12	12	16	15	21	20	25	24	30	50
		Pcs/Hour	1195	1800	1440	2160	2880	2700	3780	3600	4500	4320	5400	9000
		Pcs/8 Hour	9561	14300	11520	17280	23040	21600	30240	28800	36000	34560	43200	72000
		M³/Year	72619	110000	87493	131241	174987	164051	229671	218734	273418	262481	328101	546835
Porous brick	Proous Brick 240×115×90mm	Pcs/Pallet	10	10	12	12	16	15	20	18	25	24	30	50
Porous brick	Proous Brick 240×115×90mm	Pcs/8 Hour	9561	14300	11520	17280	23040	21600	28800	25920	36000	34560	43200	72000
Standard bricks	Solid Brick 240×115×53mm 40Pcs/m³	Pcs/Pallet	20	20	24	24	34	30	40	36	50	48	60	100
Standard bricks	Solid Brick 240×115×53mm 40Pcs/m³	Pcs/8 Hour	19123	28600	23040	34560	48960	43200	57600	51840	72000	69120	86400	144000
	Pallet Size(mm)		690*550	690*550	850*550	850*550	1150*550	850*680	1100*700	850*850	1350*700	1100*850	1350*900	1350*1400

Block machine production video.

Notes:
The company keeps the right to revise above parameters,If there is any alterations,advance notice won t be given then.
The products' most applicable production speed is decided by the product shape,size and material.

Twin-shaft compulsory synchronous vibration

Twin-shaft compulsory synchronous vibration mechanism fully meet the required by the host in cloth andboost pressure forming diferent vibration freguency and amplitude, ensure the compactness of the productsshorten the molding cycle.

Low frequency feeding, high-frequency molding

By computer control inverter directional vibration, and cancel the vibration energy consumption.ow.frequency charging, high-frequency molding, moulding and make concrete in two to three seconds of vibrationliquefaction in full, exhaust in order to achieve high density, high strength.

Independently developed, easy to operate

All of the electronic control system research and development on its own.After accumulating to upgrade.Atpresent not only in the operation is convenient and easy to understand.And formula is memory, automatic faultdiagnosis analysis product density more dysfunctional automatically adjust the charging ratio, etc.

High quality, low error

Forced reciprocating machine, fabric quickly empty to evenly between concrete block and block into the mouldweighterror+-2%.Theintensityoferror +-10%.

Flexible customization, high usability

By varying the mold to produce various products, such as: all kinds of hollow, solid block;Various kinds ofpaving bricks;Various luyandan and flood control and water conservancy engineering block.

Security protection, operational safety

While ensuring the convenience of machine debugging, multiple safety protection doors are installed to emphasize the standardized operation of operators and ensure their safety.
